Oscilloscope,Dual Channel Oscillometer Display Oscope Meter Oscillometer With Save Oscope Meter Handheld Rate Dual Channel 3.2inch Ips Display Handheld 120mhz 250msa/s Hxber 3in1 With -

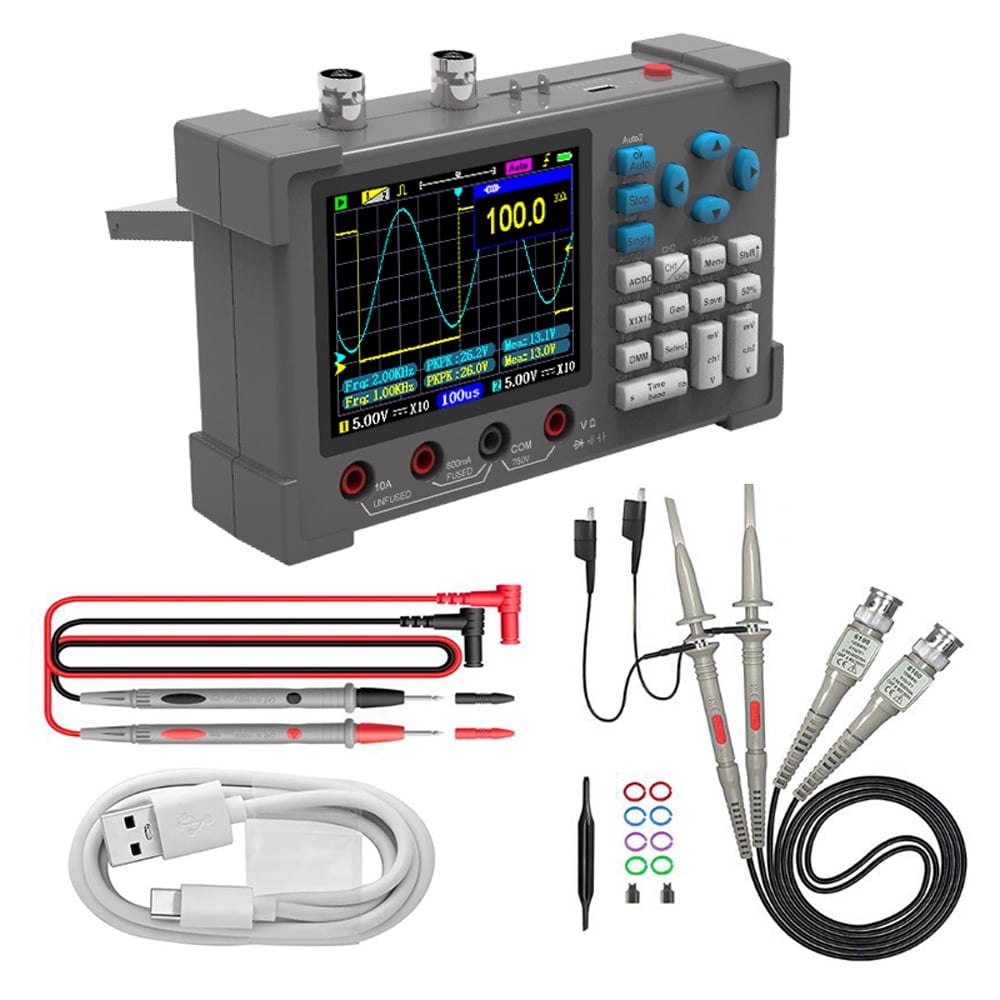

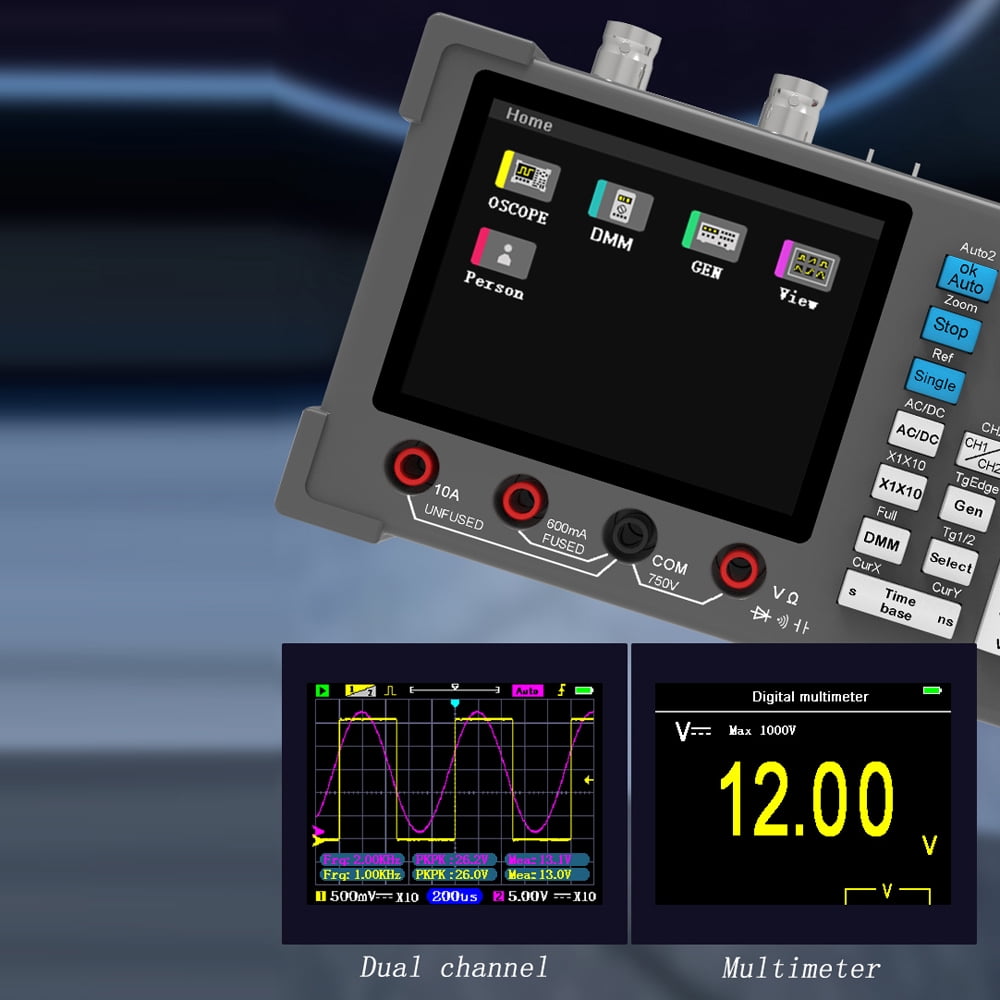

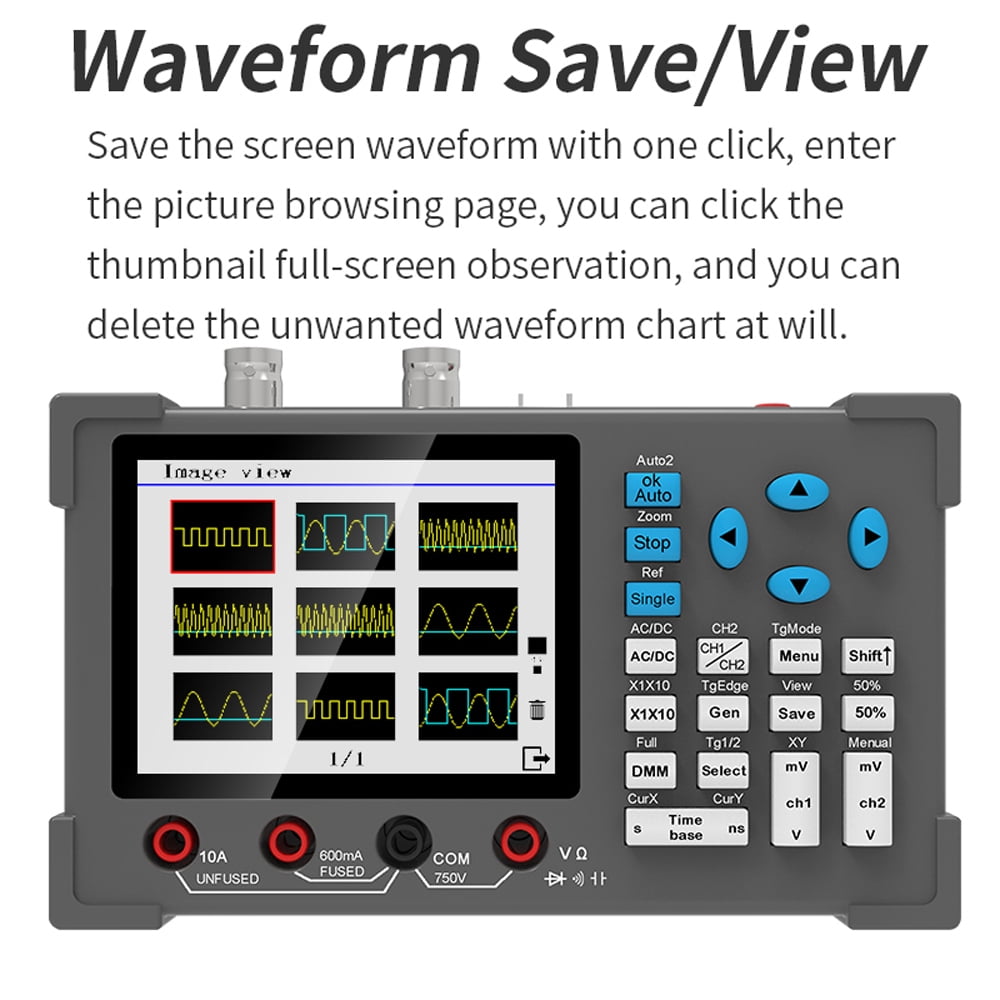

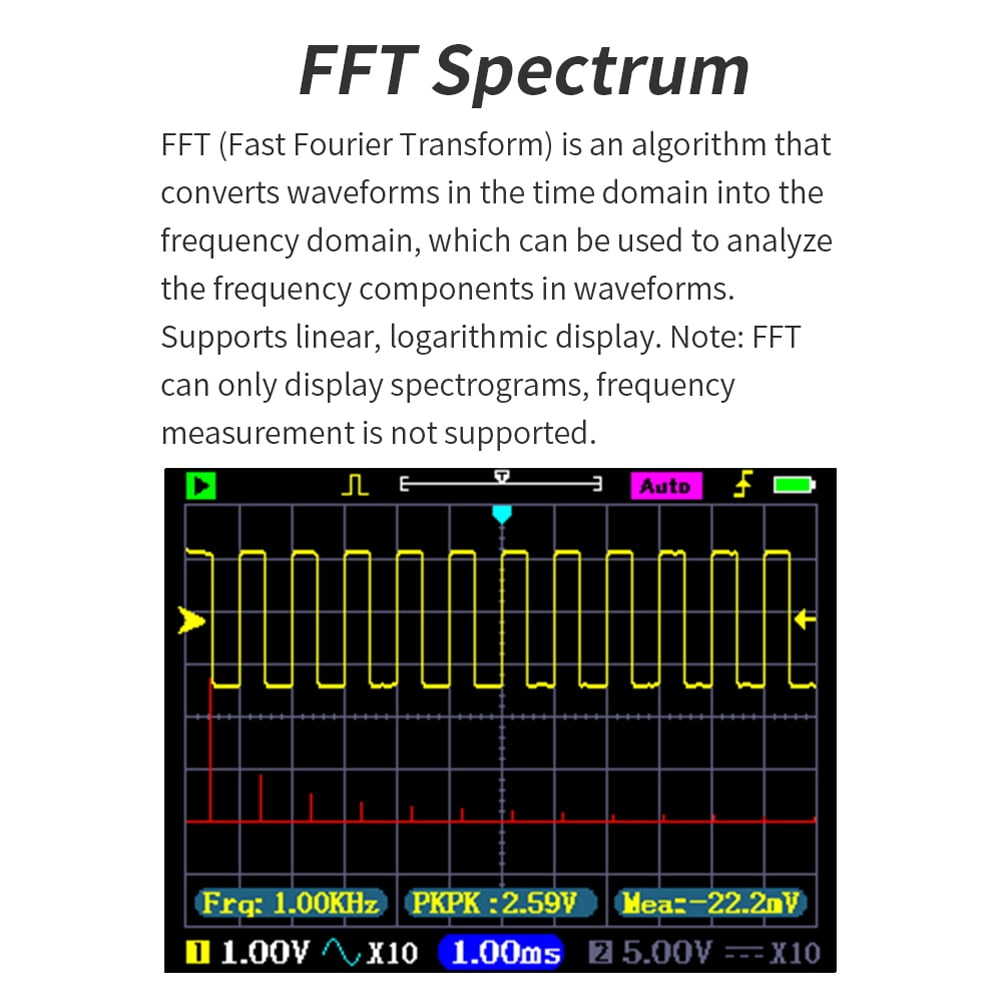

3in1 Oscilloscope Multimeter Signal Generator Machine 3.2inch IPS Display Oscope Meter Handheld Oscilloscope 120Mhz Bandwidth 250MSa/s Sampling Rate Dual Channel Oscillometer with Waveform Save and View Function for DIY and Electronic Test Support for latching reference waveforms, statically displaying current waveform on screen, while dynamic waveforms are continue to update normally. And can be used for reference and comparison between multiple waveforms. FFT can only display spectrograms, frequency measurement is not supported. Built-in true RMS multimeter, that supports quick software calibration. With /ACvoltage, /ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, oscilloscope and multimeter functions can be used simultaneously (small window in upper right corner). Support one-button automatic and fully-automatic mode, no complicated operation, you can quickly detect and display waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed. Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With perfect trigger function (automatic, single, normal). Supports sensitivity and time base adjustment, automatic mode adjustment, 2-channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view. Use an isolation transformer and isolation optocoupler chip to isolate multimeter from oscilloscope, so you don't have to worry about common ground wiring. (When measuring high voltage, multimeter, and oscilloscope cannot be used at same time). With dual-channel mode, which can measure and display two signal waveforms at same time for waveform comparison and analysis. Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. voltage amplitude is 2.5V, frequency is adjustable from 0-2Mhz, and squarewave duty cycle is adjustable from 1% to 99%. It can easily handle measurement in various fields, widely used in fields of testing and debugging of electronic circuits, troubleshooting and repairing of elect oscilloscope will automatically detect signal and adjusts ranges. Support manual adjustment of waveform vertically and horizontally. vertical sensitivity indicates voltage in vertical direction, and it is adjusted by mV and V buttons to adapt to different voltages. time base represents time in horizontal direction. It is adjusted by S and NS buttons to accommodate different frequencies. In stop mode, user can move waveform left and right. mode is an imaging formed by combining waveforms of two channels and is commonly used to display phase difference or frequency relationship between two signals. Supports X cursor and Y cursor measurement. horizontal cursor can be used, for example, to measure interval time between two pulses. vertical cursor can be used to measure voltage and voltage difference at any two locations. real-time sampling rate is 250MSa/s, dual-channel mode bandwidth is halved to 60Mhz. This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple. Save screen waveform with one click, enter picture browsing page, you can click thumbnail for full-screen observation and also can delete unwanted waveform chart at will.<br><br>3in1 design, this product ingeniously integrates digital oscilloscope, multimeter, and signal source functions in one device. Equipped with a 3.2-inch IPS display. With 120MHz bandwidth and 250MSa/s sampling rate. 3 trigger modes were designed, automatic, single, and normal. Multifunctional design, supports sensitivity and time base adjustment, automatic mode adjustment, 2-channel waveform analysis, cursor measurement, reference

• XY Mode for Cursor Measurement: The XY mode is an imaging formed by combining the waveforms of two channels and is commonly used to display the phase difference or frequency relationship between two signals. Supports X cursor and Y cursor measurement. The horizontal cursor can be used, for example, to measure the interval time between two pulses. The vertical cursor can be used to measure the voltage and the voltage difference at any two locations.
• High Bandwidth & Sampling Rate: The real-time sampling rate is 250MSa/s, dual-channel mode bandwidth is halved to 60Mhz.

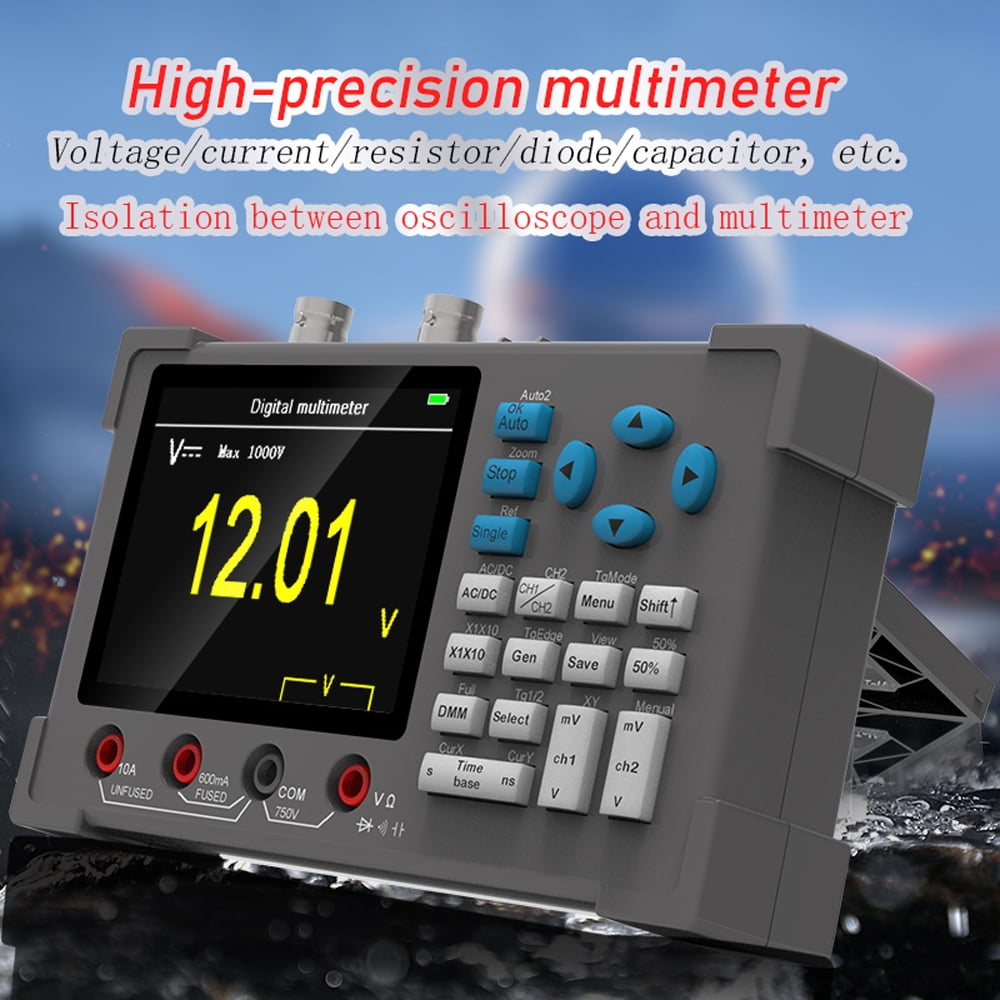

• High-precise Multimeter: Built-in true RMS multimeter, that supports quick software calibration. With DC/ACvoltage, DC/ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner).
• Safer Design: Use an isolation transformer and isolation optocoupler chip to isolate the multimeter from the oscilloscope, so you don't have to worry about common ground wiring. (When measuring high voltage, the multimeter, and oscilloscope cannot be used at the same time).

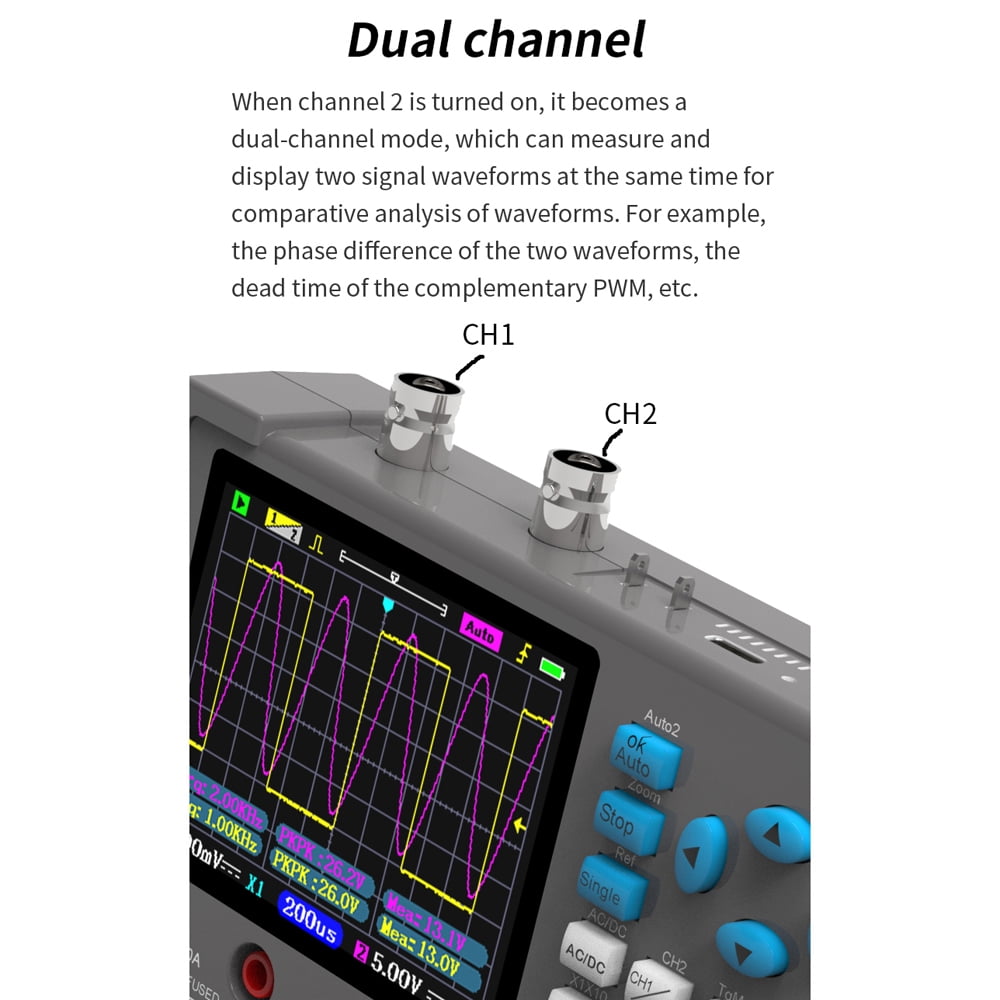

• Dual Channel: With dual-channel mode, which can measure and display two signal waveforms at the same time for waveform comparison and analysis.
